SGA1010
Analysers and meters
Fixed Single Gas Analyser CO/CO2/CH4/O2/H2 (SGA)
DesignationSGA1010

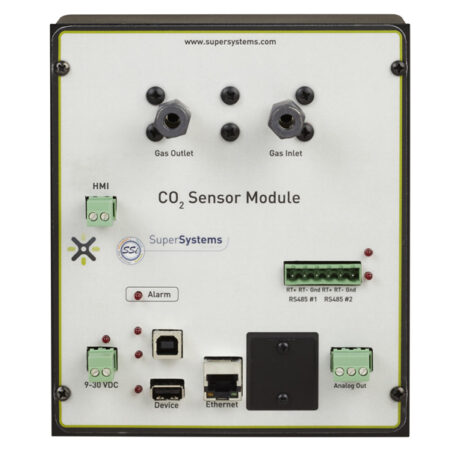

Single gas infrared sensor that continuously measures one furnace atmosphere gas in heat treatment applications.
- Accurate single gas measurement with an infrared sensor
- Easy to use touch screen with chart recording and data logging
- Simple field calibration for zero and span
- Automatic zero and span calibration function
- Ammonia compatible design for aggressive atmospheres
- Built-in sample pump
- User configurable alarms shown on the touch screen
- Ethernet, USB and RS485 Modbus communications for SCADA integration
- Selectable % volume or ppm display
- Multi-language interface
- CO (carbon monoxide) range0 - 100 %
- CO2 (carbon dioxide) range0 - 2.0 %, option 0 - 20.0 %
- CH4 (methane) range0 - 100 %
- Carbon potential %C0.1 - 2.0 %
- Measuring method CO, CO2 and CH4Non-dispersive infrared (NDIR)
Opis

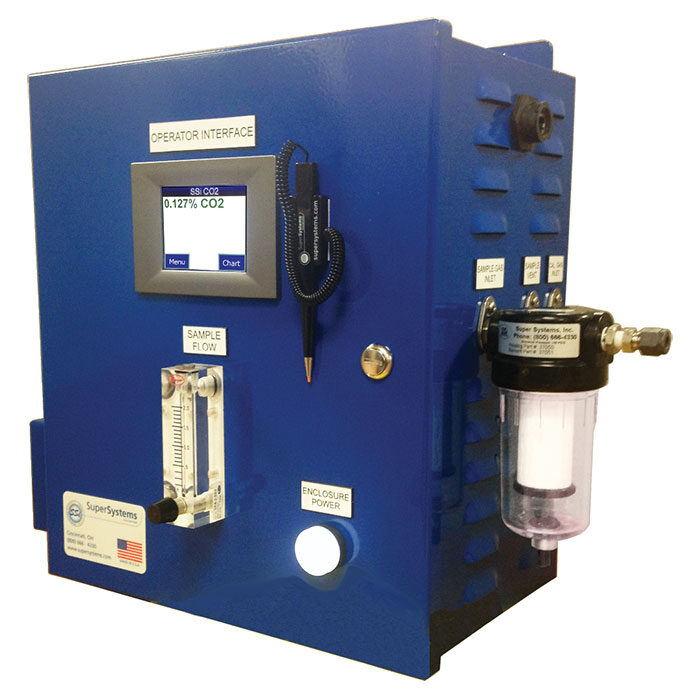

The SSi SGA is an NDIR single gas analyser for monitoring CO, CO2, CH4 or H2 in the protective atmospheres used in heat treatment. Each unit is configured for one gas and delivers a precise, continuous measurement of the furnace atmosphere.

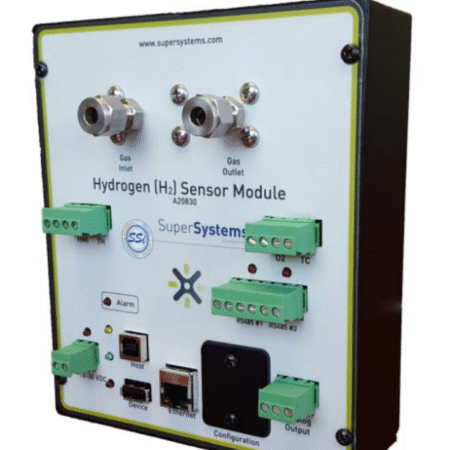

Carbon monoxide, carbon dioxide and methane are measured by non-dispersive infrared sensing, while hydrogen is measured by thermal conductivity. Onboard data logging, chart recording and simple field calibration of zero and span are standard, and the ammonia compatible design allows the analyser to be used on aggressive atmospheres.
Dane techniczne
| CO (carbon monoxide) range | 0 - 100 % |
|---|---|
| CO2 (carbon dioxide) range | 0 - 2.0 %, option 0 - 20.0 % |
| CH4 (methane) range | 0 - 100 % |
| Carbon potential %C | 0.1 - 2.0 % |
| Measuring method CO, CO2 and CH4 | Non-dispersive infrared (NDIR) |
| H2 (hydrogen) range | 0 - 100 % |
| Measuring method H2 | Thermal conductivity |
| Response time | 0 - 6 seconds |
| Power supply | 110 VAC or 230 VAC |
| Max. operating temperature | 50 °C (122 °F) |
| Analogue inputs | 2 (4-20 mA or 0-5 V) |
| Communications | Ethernet, USB(A), USB(B), RS485 Modbus |
Applications
It works where the atmosphere decides the quality of the case
The probe measures and controls the carbon potential in controlled atmospheres, whatever the furnace design.
Furnace types
01Sealed quench furnaces
02Pit furnaces
03Belt furnaces
04Muffle furnaces
05Continuous furnaces
06Carburising
07Endothermic gas generators
08Hardening
