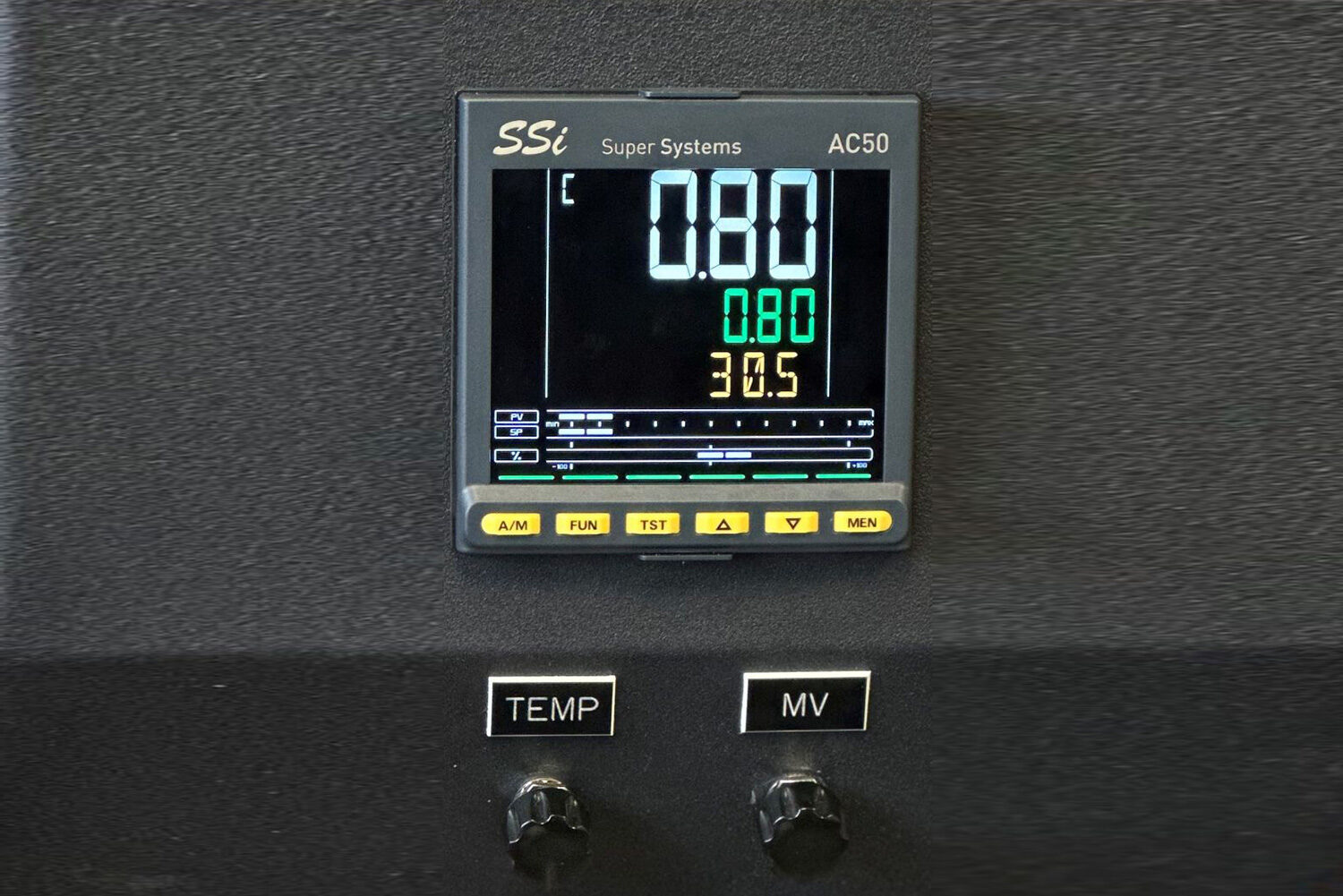

AC50 Carbon Potential Controller
DesignationAC50
A single-loop 1/4 DIN controller for carbon potential, dew point, oxygen or probe millivolt control on atmosphere furnaces and gas generators.

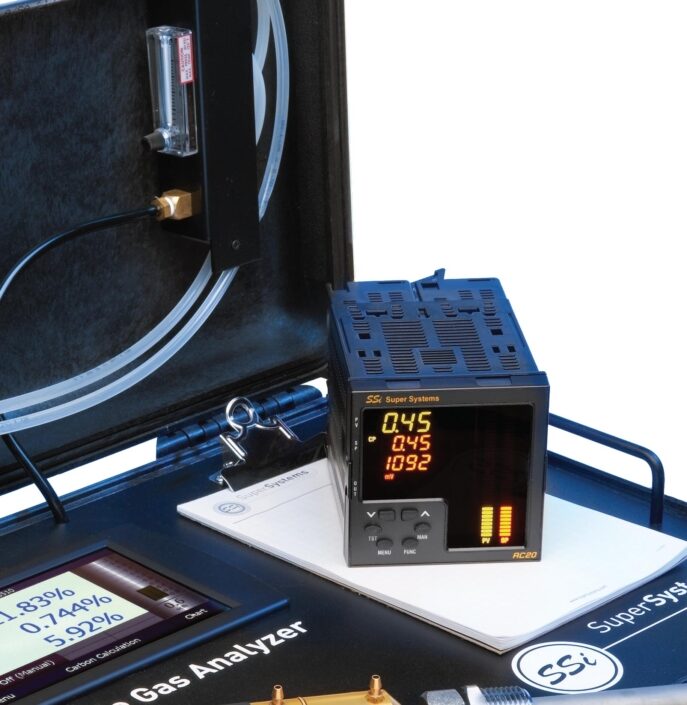

- Direct replacement for the SSi AC20 and most atmosphere controllers
- Control of % carbon, dew point, probe millivolts and % oxygen
- Oxygen autorange in % O2, ppm, ppb and exponential
- 1/4 DIN form factor
- Ethernet Modbus TCP communications
- Modbus RTU RS485 communications
- Four relay outputs and two analogue outputs
- Five digital inputs
- High impedance input greater than 100 megohms
- Three internal timers for probe burn-off, duration and recovery
- Automatic probe impedance testing
- Remote configuration from software
- CE, RoHS, REACH, UL and cUL certified
- Power supply100 to 240 V AC ±10 %, 50/60 Hz
- Carbon range0.00 to 2.00 %
- Dew point range-75 to 40 °C (-100 to 100 °F)
- Probe millivolts0 to 1500 mV
- Oxygen autorange% O2, ppm, ppb, exponential
Opis
The AC50 is a single-loop atmosphere controller for thermal processing plant, supplied as a direct replacement for the SSi AC20 and for most other atmosphere controllers. It controls % carbon, dew point, probe millivolts and % oxygen, with oxygen autoranging between % O2, ppm, ppb and exponential display.
The high impedance input of more than 100 megohms suits zirconia oxygen probes, and three internal timers handle probe burn-off, duration and recovery, with automatic probe impedance testing supporting a predictive maintenance plan. Four relay outputs, two analogue outputs and five digital inputs are provided in the 1/4 DIN case, with Ethernet Modbus TCP or Modbus RTU RS485 communications and remote configuration from software.
Dane techniczne
| Power supply | 100 to 240 V AC ±10 %, 50/60 Hz |
|---|---|
| Carbon range | 0.00 to 2.00 % |
| Dew point range | -75 to 40 °C (-100 to 100 °F) |
| Probe millivolts | 0 to 1500 mV |
| Oxygen autorange | % O2, ppm, ppb, exponential |
| Input impedance | Greater than 100 megohms |
| Relay outputs | Four |
| Analogue outputs | Two |
| Digital inputs | Five |
| Case size | 1/4 DIN |
| Communications | Ethernet Modbus TCP or Modbus RTU RS485 |
| Certification | CE, RoHS, REACH, UL, cUL |
Applications
It works where the atmosphere decides the quality of the case
The probe measures and controls the carbon potential in controlled atmospheres, whatever the furnace design.
Furnace types
01Atmosphere furnaces
02Endothermic gas generators
03Carburising
04Carbonitriding
05Neutral hardening
