Series 8 Temperature Controllers
DesignationSERIA 8
A line of high-precision, cost-effective process, temperature and overtemperature controllers available in 1/16, 1/8 and 1/4 DIN panel sizes.
- Universal inputs with relay and analogue outputs
- Three panel sizes: 1/16 DIN, 1/8 DIN and 1/4 DIN
- Built-in timers with high, low, deviation, band and timer-complete alarms
- Auto-tuning and smart tuning
- Modbus RS485 communications
- Three configurable relay outputs

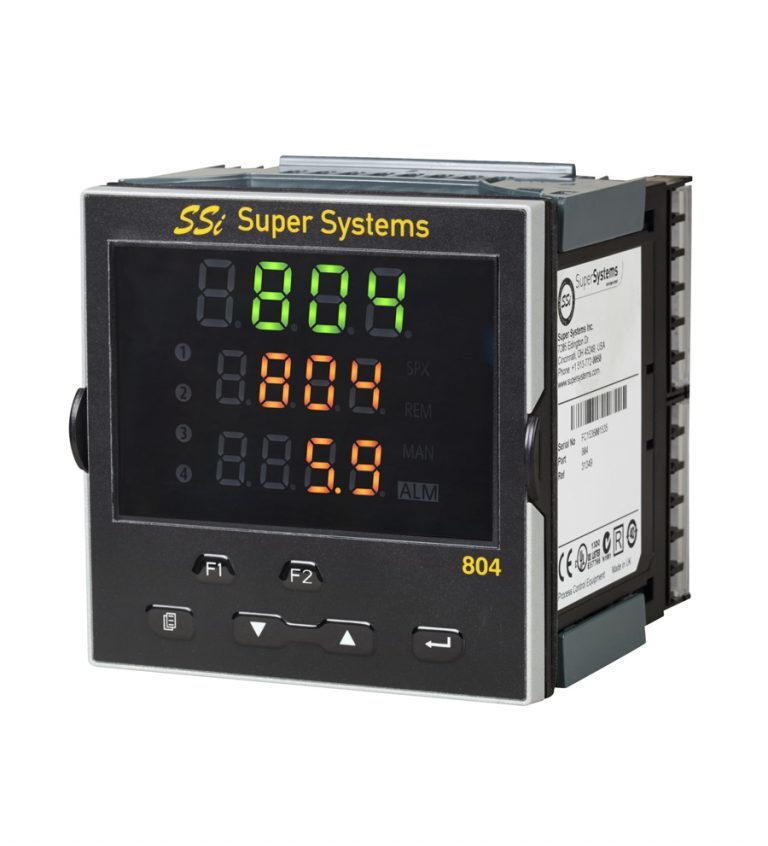

- 4-20 mA output on models 804 and 808
- 24 V transmitter supply on models 804 and 808
- FM approved, UL listed and CE marked

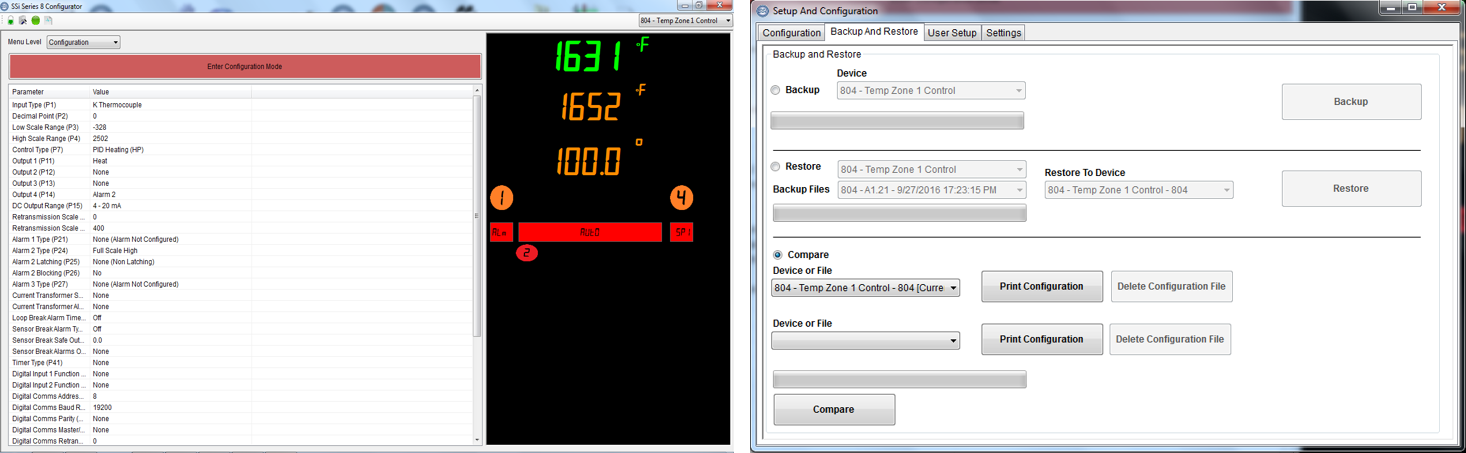

- Software for remote viewing, configuration and backup or restore
- Panel sizes1/16 DIN, 1/8 DIN, 1/4 DIN
- Calibration accuracy±0.25 % of reading ±1 LSD
- Input typesThermocouple K, J, N, R, S, B, L, T, C and custom, plus RTD
- Relay outputsThree configurable
- Analogue output4-20 mA (models 804, 808)
Opis
The SSi Series 8 covers process, temperature and overtemperature control for all types of thermal processing equipment. Universal inputs accept thermocouple and RTD signals, while relay and analogue outputs allow a single instrument to monitor and control the application.

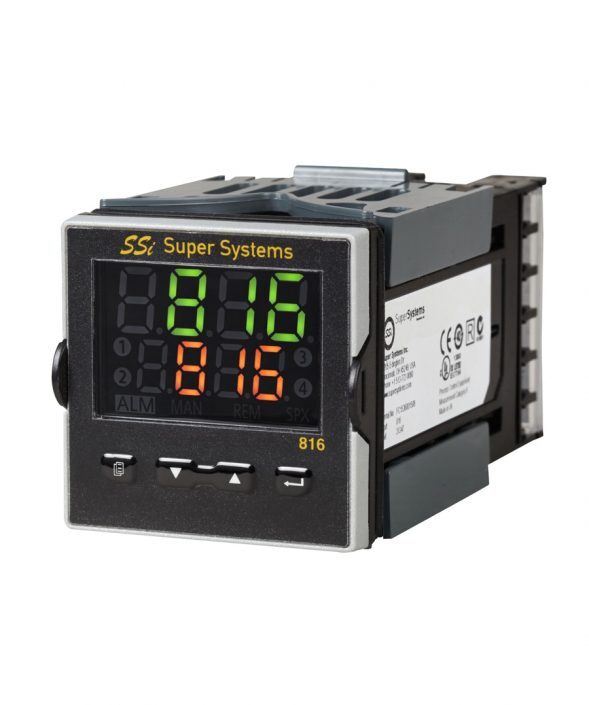

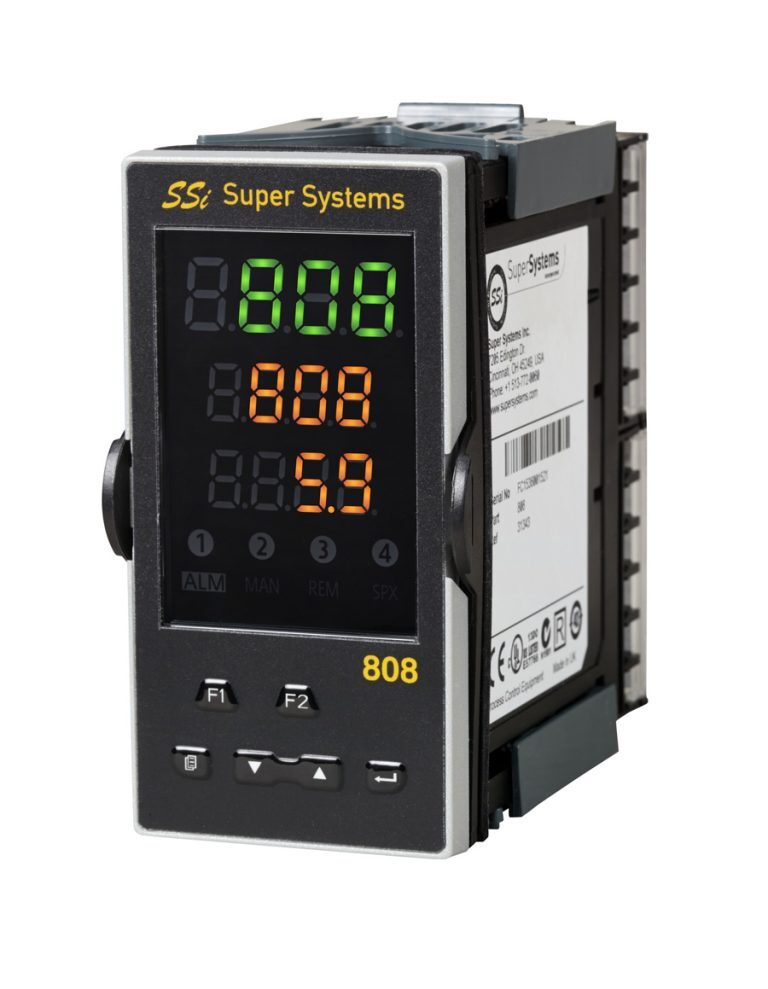

Eight models (808, 808W, 808R, 808L, 816, 816L, 804 and 804L) differ in the number of relay outputs, FM-rated relays, SSR drive output and slidewire option, so the controller can be matched to the furnace it serves. The supplied software allows remote viewing, configuration and backup or restore of the instrument settings.
Dane techniczne
| Panel sizes | 1/16 DIN, 1/8 DIN, 1/4 DIN |
|---|---|
| Calibration accuracy | ±0.25 % of reading ±1 LSD |
| Input types | Thermocouple K, J, N, R, S, B, L, T, C and custom, plus RTD |
| Relay outputs | Three configurable |
| Analogue output | 4-20 mA (models 804, 808) |
| Transmitter supply | 24 V (models 804, 808) |
| Communications | Modbus RS485 |
| Models | 808, 808W, 808R, 808L, 816, 816L, 804, 804L |
| Approvals | FM, UL, CE |
Applications
It works where the atmosphere decides the quality of the case
The probe measures and controls the carbon potential in controlled atmospheres, whatever the furnace design.
Furnace types
01Temperature control on ovens, furnaces and gas generators
02Overtemperature protection on thermal processing equipment
03General process control in heat treatment plants
