GOLD PROBE XL
Oxygen probes

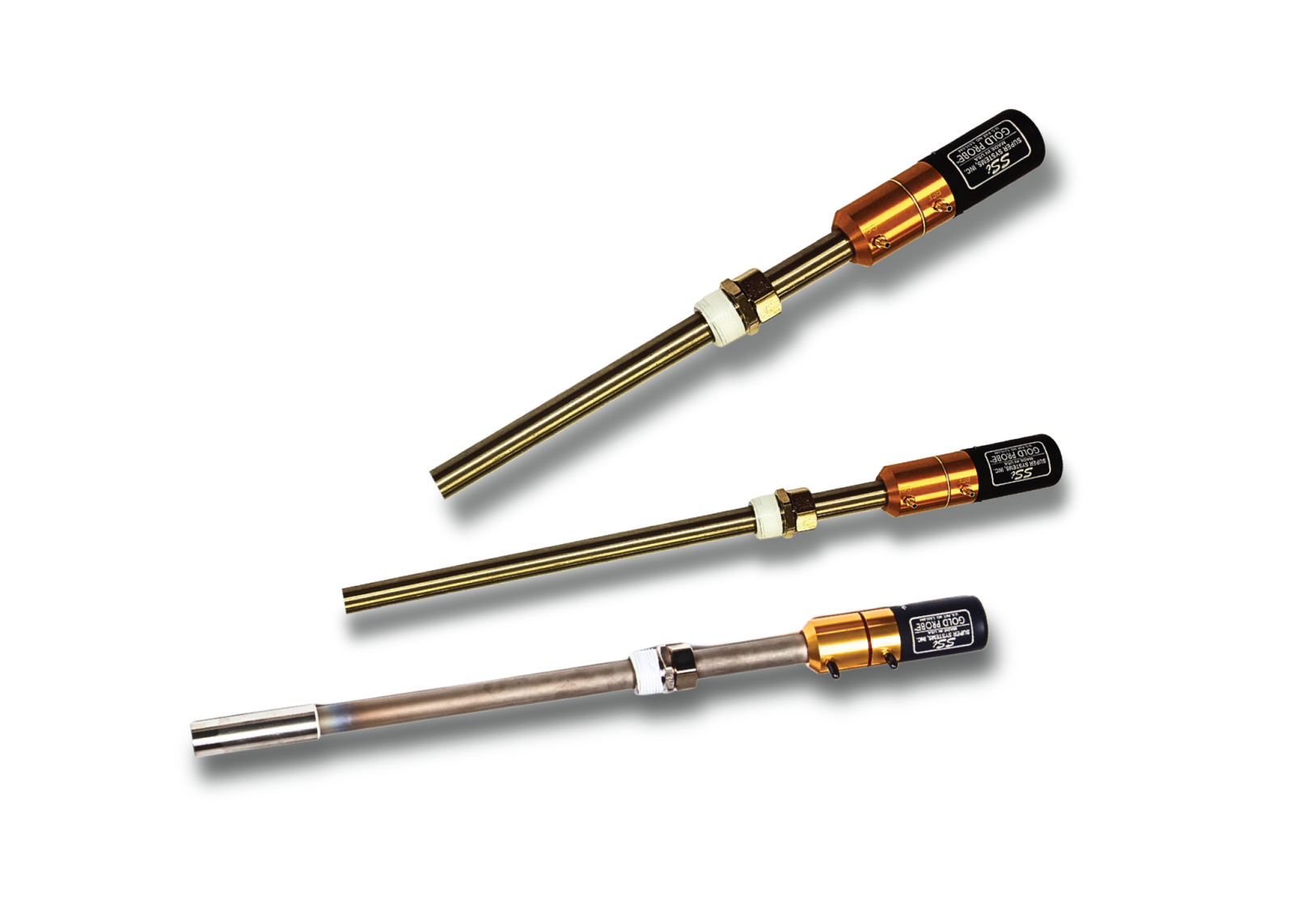

Gold Probe XL Oxygen Probe
DesignationGOLD PROBE XL
A reinforced spring assembly compensates the differential thermal expansion of ceramic parts and sheath in probes longer than 1000 mm.
- Reinforced spring design gives better contact between the mV electrode and the zirconia cell
- Compensates the differential thermal expansion of ceramic parts and sheath over long insertion lengths
- Delivers precision and repeatability across a wide variety of controlled atmosphere heat treatment processes
- Patented sheath and electrode design facilitates probe burnout, promoting longer life
- 12-month warranty from the date of installation
- Free technical support from experienced furnace engineers
- Carbon potential measurement0.01 % - 1.6 %
- Accuracy+/- 0.02 %CP
- Operating temperature590 °C to 1100 °C
- Thermocouple versions availableS, R, K, N, B or version without thermocouple
- Available lengths1000 mm, 1200 mm, 1400 mm
Opis
The improved, reinforced spring assembly of the Gold Probe XL compensates far better for the difference in thermal expansion between the ceramic components of the probe and the outer sheath. It is particularly recommended for pit and muffle furnaces, where probes longer than 1000 mm are typically used.
Apart from the reinforced spring design, the XL retains all the characteristics of the standard SSi Gold Probe: the same zirconia sensing cell, the same accuracy and repeatability, and full interchangeability with other manufacturers' probes and instrumentation.
Dane techniczne
| Carbon potential measurement | 0.01 % - 1.6 % |
|---|---|
| Accuracy | +/- 0.02 %CP |
| Operating temperature | 590 °C to 1100 °C |
| Thermocouple versions available | S, R, K, N, B or version without thermocouple |
| Available lengths | 1000 mm, 1200 mm, 1400 mm |
| Mounting | 1" NPT or 3/4" BSP |
| Output signal | 0 to 1205 mV |
| Impedance | below 2 kOhm when new |
Applications
It works where the atmosphere decides the quality of the case
The probe measures and controls the carbon potential in controlled atmospheres, whatever the furnace design.
Furnace types
01Pit furnaces
02Mesh belt furnaces
03Muffle furnaces
04Continuous pusher furnaces
