Matrix Series Controllers
DesignationMATRIX
A scalable control platform with expandable analogue and digital I/O, built for multi-zone and multi-loop thermal processing applications.
- Multiple screen sizes available

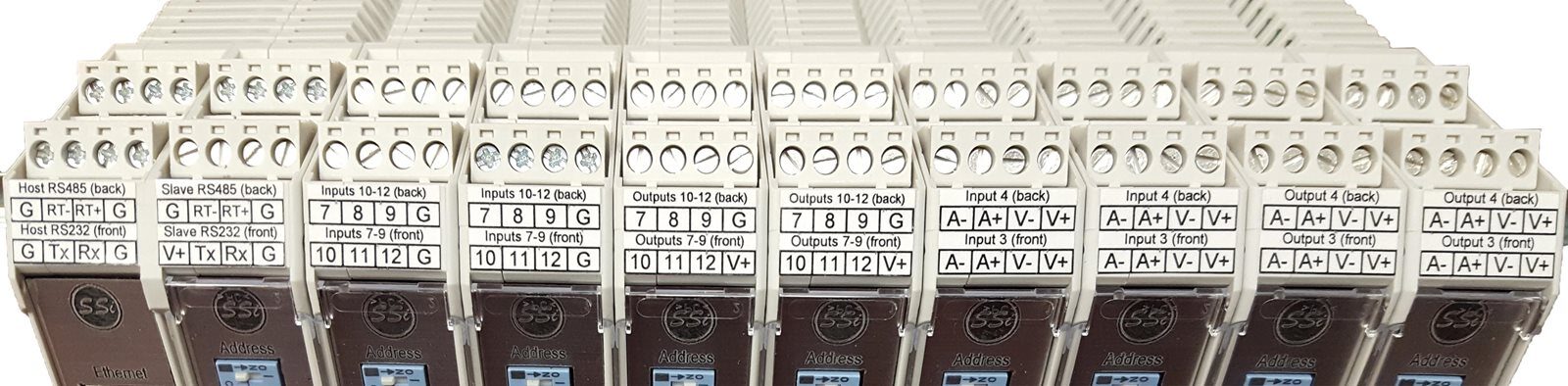

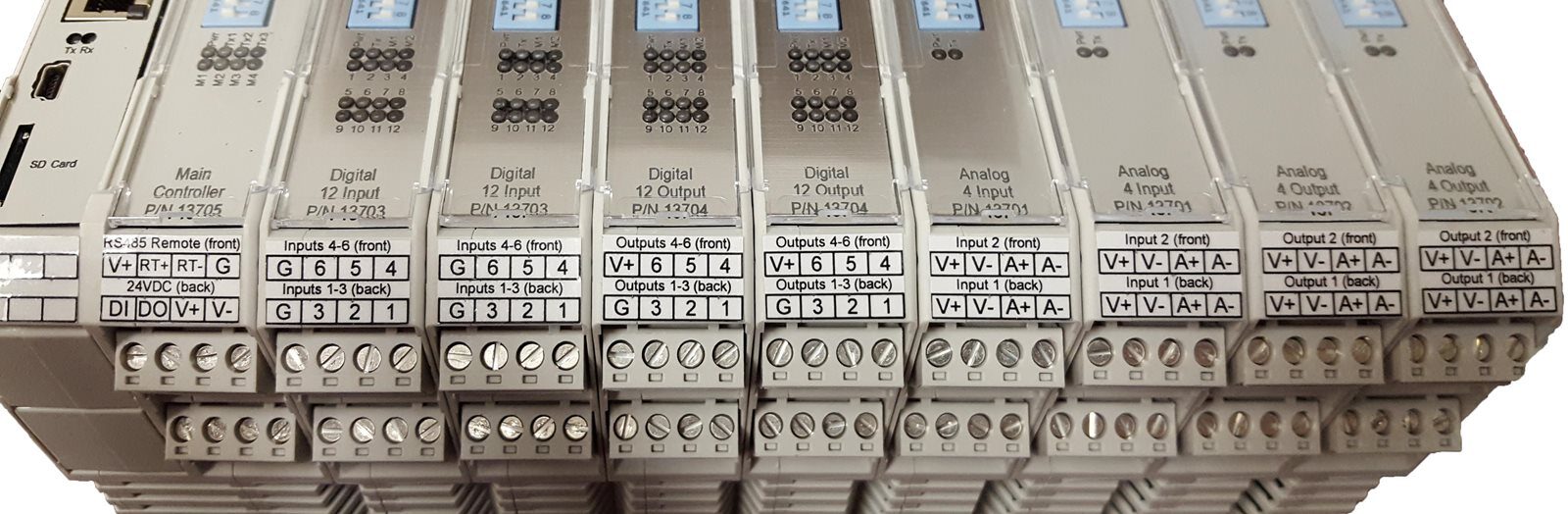

- Expandable I/O for analogue and digital cards
- Up to 16 PID loops in one instrument
- Multiple recipe programmers

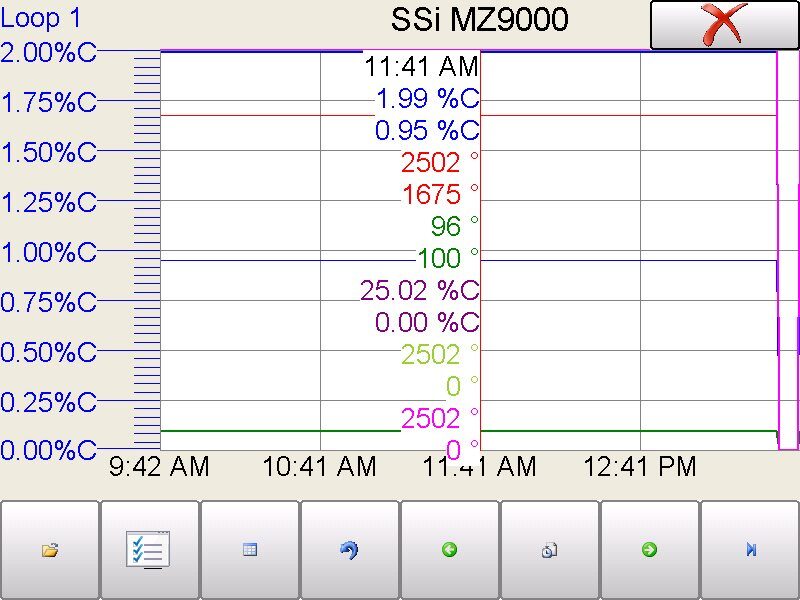

- Built-in data logging

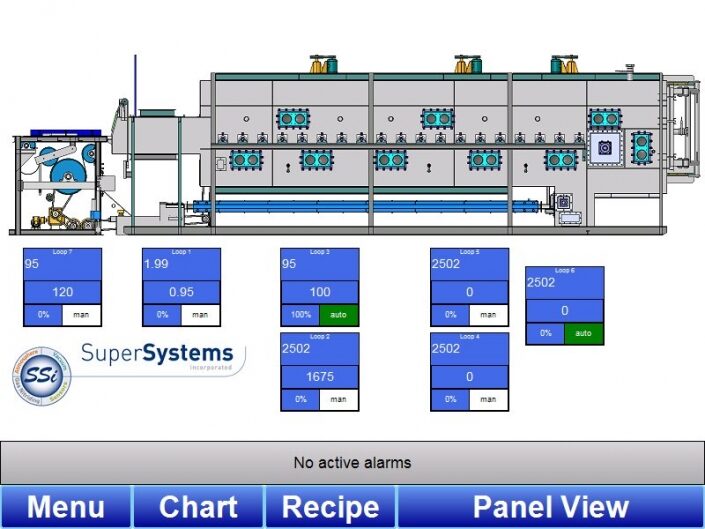

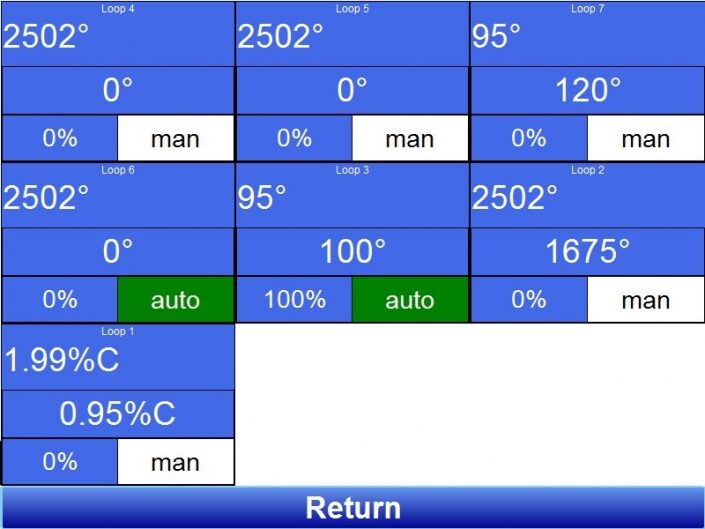

- Customisable HMI screens

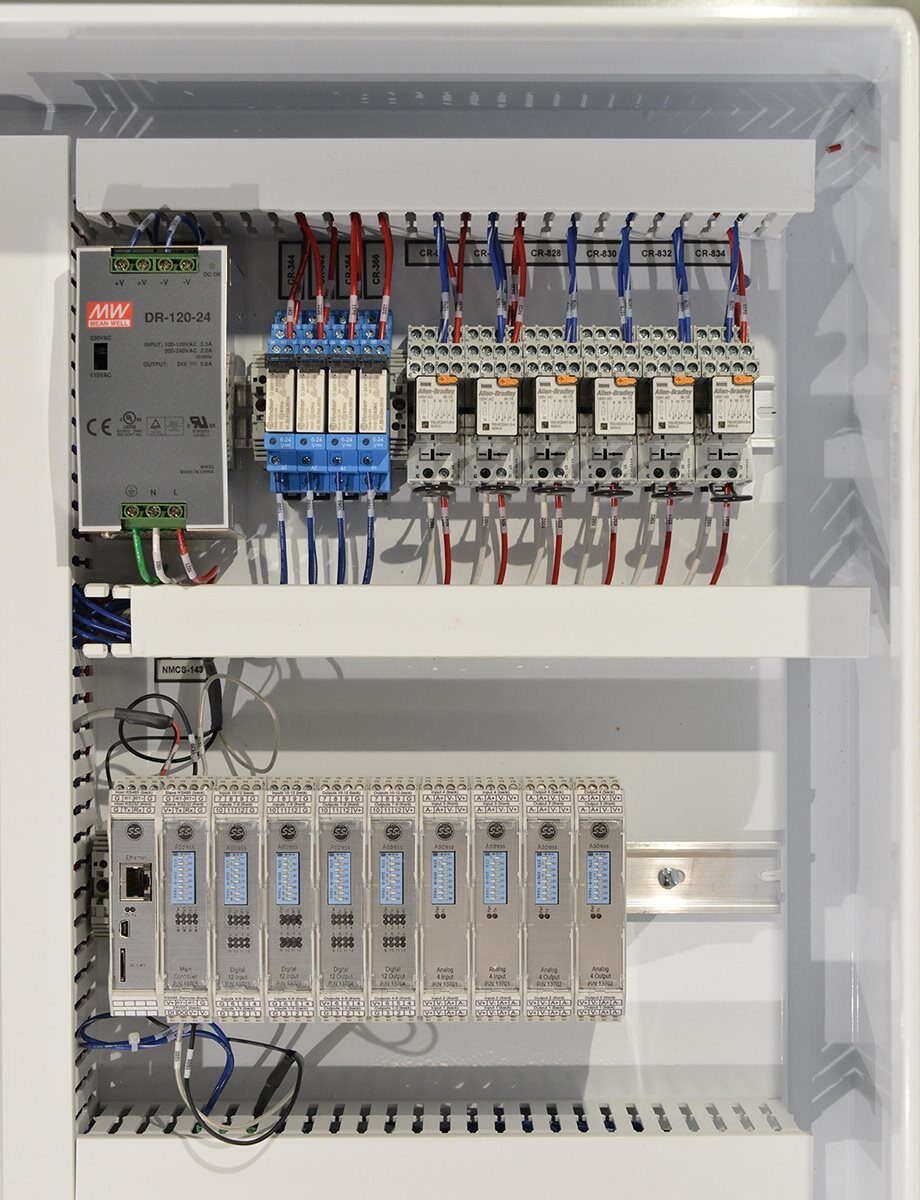

- DIN rail mounting
- Remote configurable colour touch screen
- Thermocouple, millivolt and milliamp input types
- PID, on/off or analogue output control
- Configuration from the touch screen or a PC configurator
- Ethernet Modbus TCP, Modbus RTU RS485, Allen Bradley DF1 and Televac MM200 communications
- Max analogue inputs24
- Max auxiliary analogue inputs40
- Max analogue outputs16
- Max digital outputs64
- Max digital inputs32
Opis
The Matrix Series is a flexible control platform that can be sized precisely to the application thanks to expandable I/O for analogue and digital cards. A single instrument handles up to 16 PID loops, 24 analogue inputs and 64 digital outputs, which covers multi-zone furnaces and complete generator lines.
Advanced thermal processing functions, multiple recipe programmers and built-in data logging are supplied as standard. The customisable HMI on a remote colour touch screen lets every operator screen be arranged around the process, and configuration can be done either from the touch screen or from a PC-based configurator.
Dane techniczne
| Max analogue inputs | 24 |
|---|---|
| Max auxiliary analogue inputs | 40 |
| Max analogue outputs | 16 |
| Max digital outputs | 64 |
| Max digital inputs | 32 |
| Max PID loops | 16 |
| Max calculated variables | 8 |
| Max flow meters | 8 |
| Max programmers | 8 |
| Max vacuum gauges | 8 |
| Max probes | 8 |
| Accuracy | Better than 1 % |
| Input types | Thermocouple, millivolt, milliamp |
| Power supply | 24 V DC |
| Mounting | DIN rail |
| Communications | Ethernet Modbus TCP, Modbus RTU RS485, Allen Bradley DF1, Televac MM200 |
Applications
It works where the atmosphere decides the quality of the case
The probe measures and controls the carbon potential in controlled atmospheres, whatever the furnace design.
Furnace types
01Temperature control
02Carbon potential control
03Dew point control
04Pressure control
05Gas flow control
06User-defined control algorithms
07Multi-zone furnaces
